Case Study:

Project Overview:

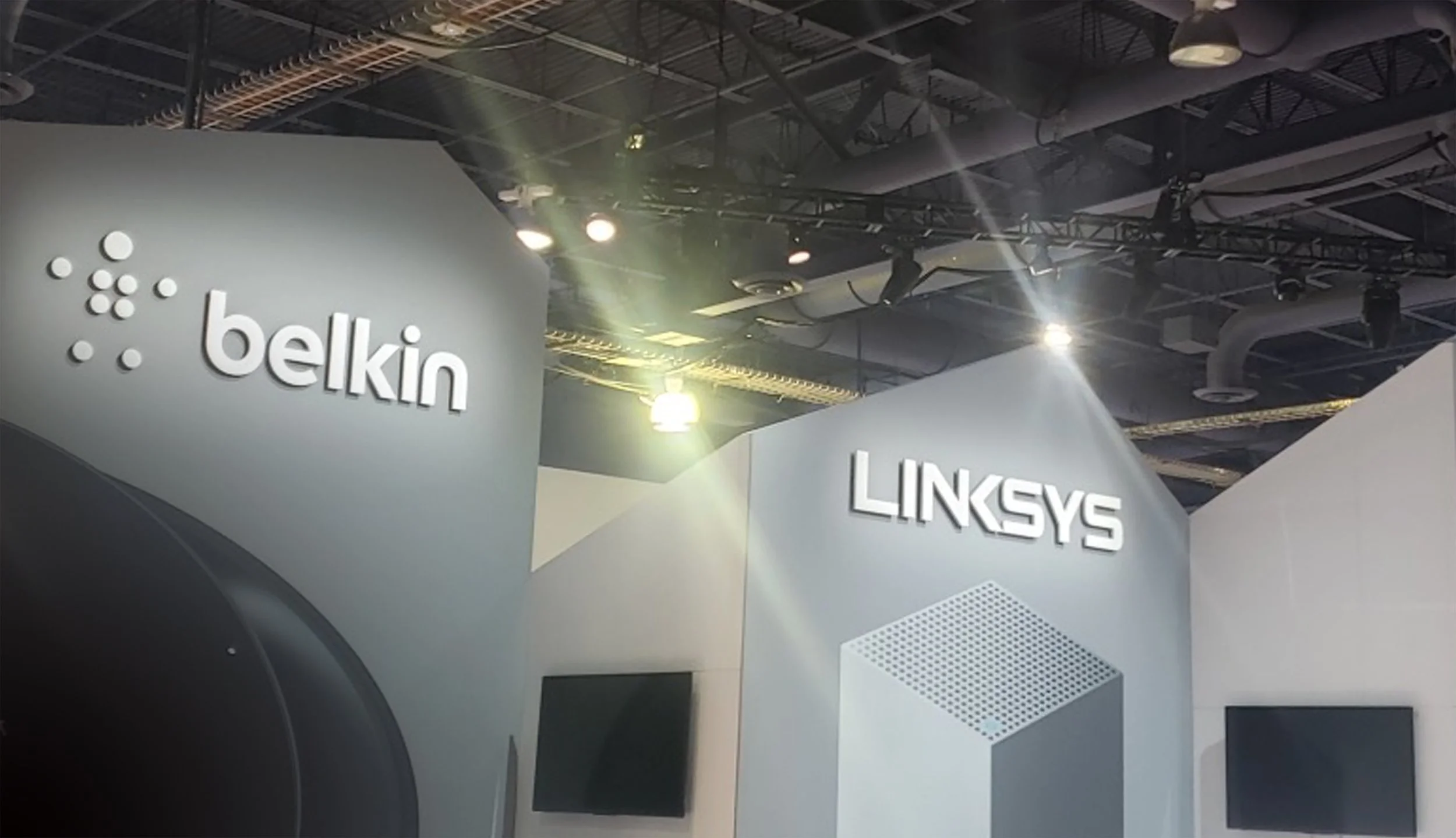

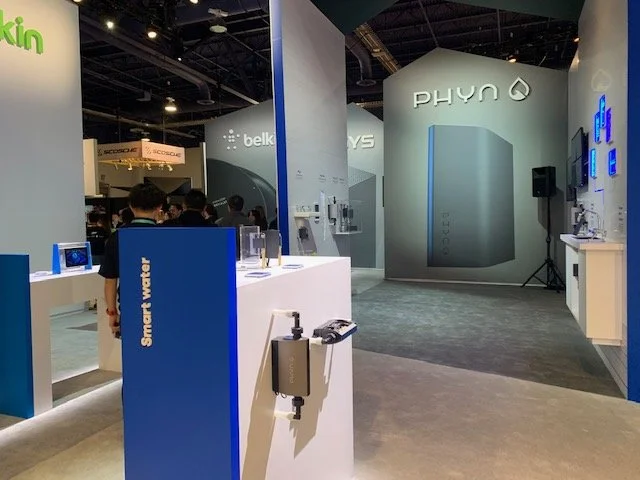

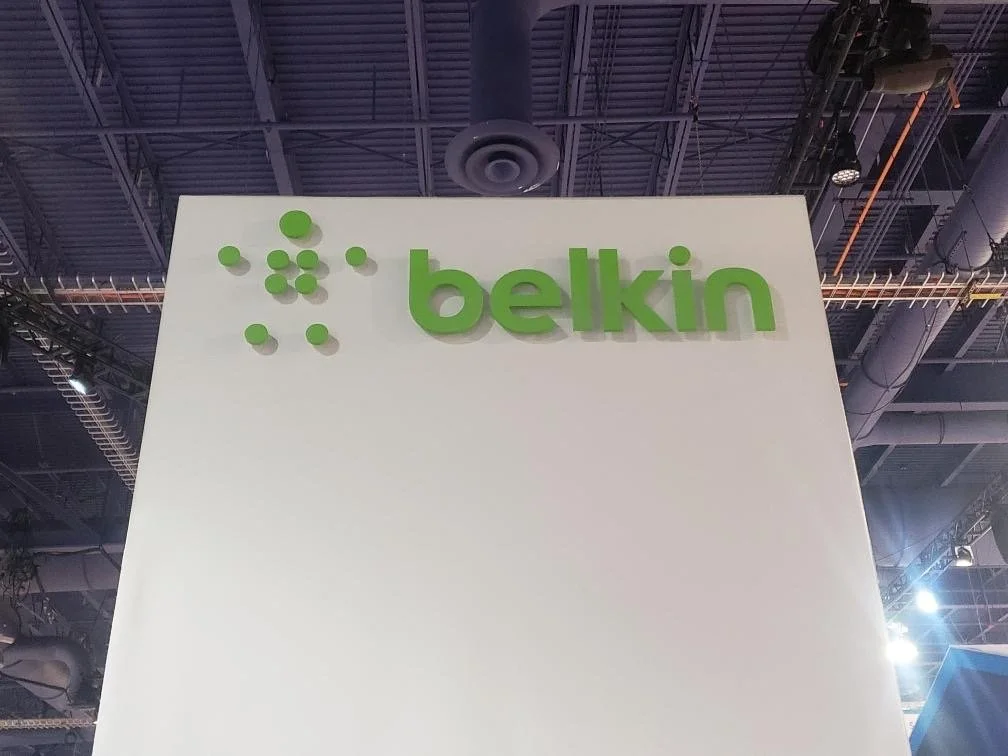

Installation of 1” PVC 3D logos for Belkin, Linksys, WEMO, and Phyn over SEG (Silicone Edge Graphics) at the top of 16-foot-high walls.

The Challenge: Rethinking 3D Signage Installation

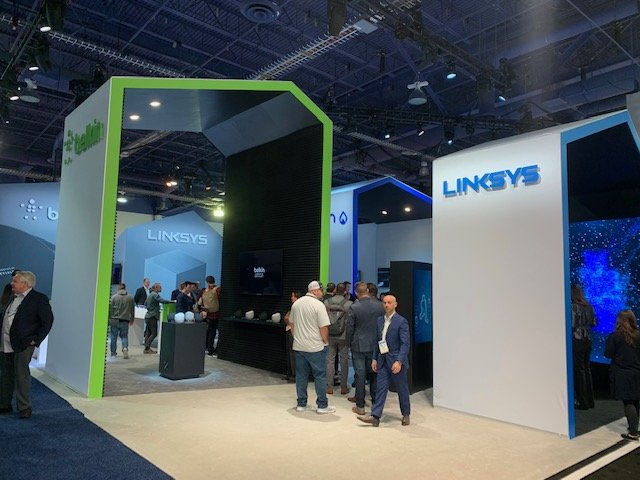

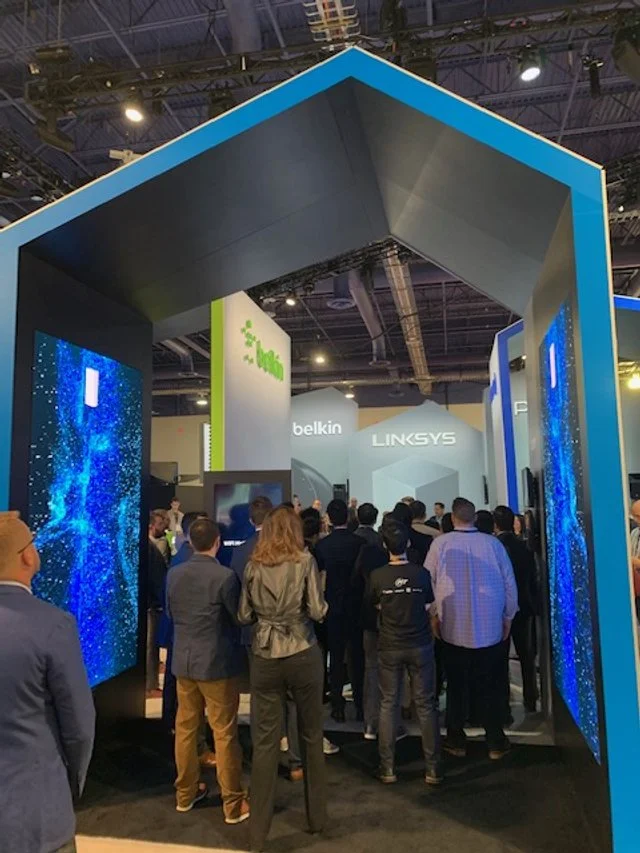

The Belkin CES 2020 booth presented a significant challenge: mounting multiple large 1” PVC 3D logos over SEG fabric graphics at a height of 16 feet. Traditional standoff methods required large holes in the fabric, resulting in:

• Compromised graphic integrity, with visible holes disrupting the fabric’s seamless appearance.

• Labor-intensive installations, requiring multiple skilled workers on-site to align and secure the signage, often using lifts or tall ladders.

• Inefficiencies in time and costs, exacerbated by the repetitive nature of these challenges across events.

The team needed a solution that maintained the pristine quality of SEG graphics, minimized on-site labor, and delivered a polished, professional finish.

The Idea: Why Not Magnets?

For decades, the signage and event industry had joked about using magnets for 3D signage installations. But earlier attempts—such as gluing magnets to the back of SEG fabrics or cutting large holes for magnets to connect—resulted in inconsistent and subpar outcomes.

The goal was to develop a solution that:

• Integrated seamlessly with existing signage fabrication workflows.

• Minimized fabric damage with smaller, less intrusive holes.

• Enabled quick, accurate, and repeatable installations.

The solution needed to blend simplicity, strength, and precision.

The Solution: Magnalign SEGConnect Magnetic Standoff

The team envisioned a groundbreaking product: a magnetic standoff system that simplified installations while maintaining superior quality. The Magnalign SEGConnect product line was born, incorporating several innovative elements:

1. Backer Standoffs:
   Strong rare earth magnets were built into backer standoffs that could be pre-installed on walls behind the SEG fabric. These backers would remain securely in place during booth transport and setup, eliminating the need for complicated on-site alignment.

2. Magnetic Cups:
   A specialized magnetic cup design ensured a strong, secure connection while significantly increasing shear strength. This enhanced the durability and safety of mounted signage, even for larger 3D logos.

3. Interchangeable Center Connectors:
   The modular design allowed the logos to be easily integrated with other Magnalign product lines, ensuring compatibility and versatility across various applications.

The Results: A Seamless, Time-Saving Installation

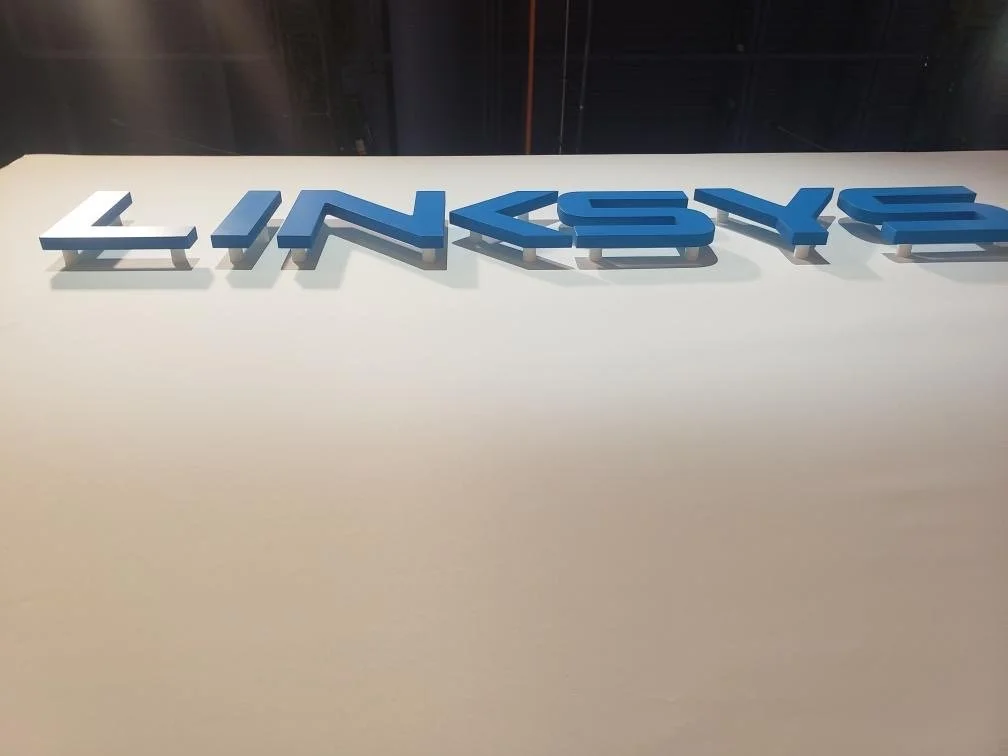

The installation of 12 large PVC 3D logos was completed with remarkable efficiency:

• Once the SEG fabric graphics were fitted into their frames, the logos clicked into place effortlessly.

• The magnetic system ensured perfect alignment on the first try, with no need for adjustments or corrections.

• The entire process required only one person on a lift, reducing labor costs and freeing up resources for other aspects of the booth setup.

By eliminating traditional fasteners and simplifying the alignment process, the Magnalign SEGConnect system delivered a clean, polished look with no visible fabric damage or misalignments.

Client Feedback

The Magnalign SEGConnect solution received glowing praise:

• "What took you so long to invent these?"

• "I couldn’t believe how fast and easy the installation was. Everything was perfectly straight, and the graphics stayed pristine."

The Belkin CES project showcased the transformative potential of the Magnalign SEGConnect system, setting a new standard for efficiency, quality, and innovation in 3D signage installation.

Why It Matters

The Magnalign SEGConnect product line revolutionizes the way signage professionals approach 3D installations over SEG graphics:

• Time Savings: Labor-intensive alignment and adjustments are virtually eliminated, reducing on-site installation time significantly.

• Cost Efficiency: By minimizing the need for skilled labor and complex equipment, SEGConnect lowers overall project costs.

• Seamless Integration: The system works effortlessly within existing signage workflows, maintaining high-quality fabrication standards.

• Pristine Aesthetics: SEG fabrics remain intact and undamaged, ensuring a flawless, professional presentation.
